SIMB3 was designed with specific features intended to make transportation cheaper and less of a hassle than similar class scientific instruments.
We often take care of SIMB3 shipping for our customers. If you are interested in purchasing an SIMB3 and have special shipping needs, please reach out.
Transport-optimized crate
All SIMB3s ship in a custom crate that is within limits of standard (non-freight) shipping requirements. The box is made exclusively of plywood and heat-treated lumber to abide by shipping import regulations.
The view the dimensions and weights of SIMB3 in various states, check out SIMB3 Dimensions.
The box is a two-part design with a carry-case (lower half) that couples to a box-top. This combination gives you flexibility during transport while also ensuring the instrument remains protected at all times.
It's common to ship the instrument with box top installed, but to then remove it when loading the buoy into a space restricted area, such as a helicopter.

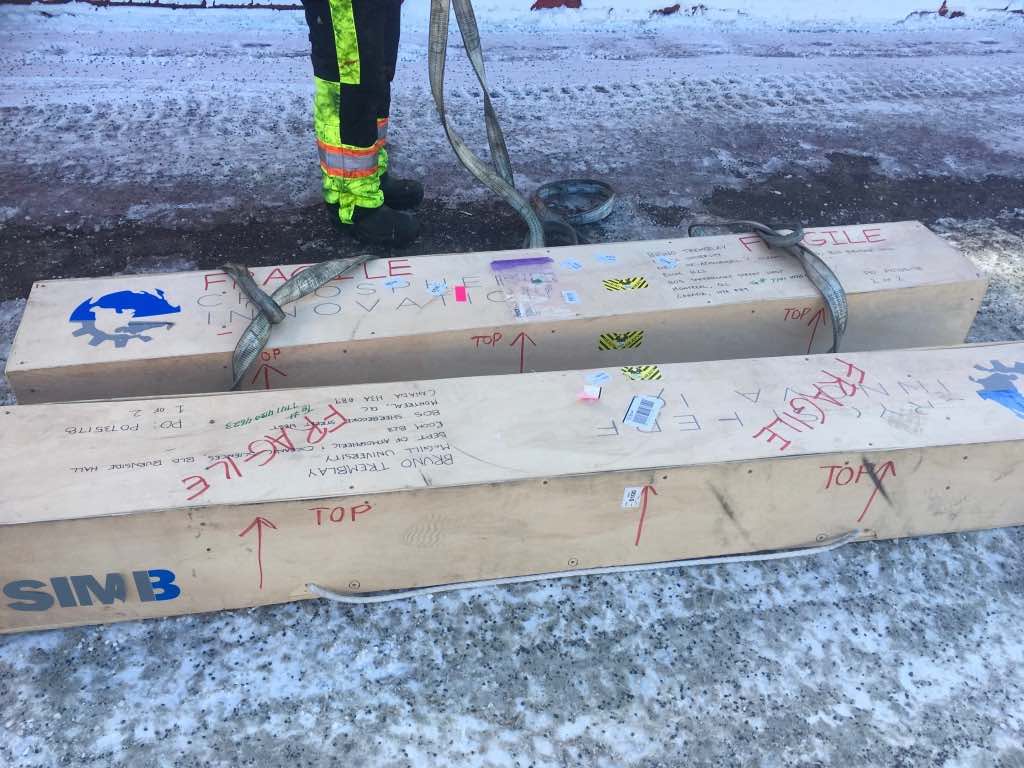

Two SIMB3s on their way to Canada in 2020. The boxes have clearly been handled rough with step marks on the top and sides. Both SIMB3 arrived in perfect condition.
No lithium batteries
SIMB3 does not contain any lithium batteries. The internal battery is a custom alkaline battery, and is not subject to international regulations on lithium air-transport.
Removable ballast
A standard SIMB3 ships with a 23 lb ballast. With the box top removed, the ballast can be separated to lighten the instrument during hand transport.
